Antenna and Microwave services that end in measured results

We scope in one business day. You’ll know the plan, price, and schedule before we start.

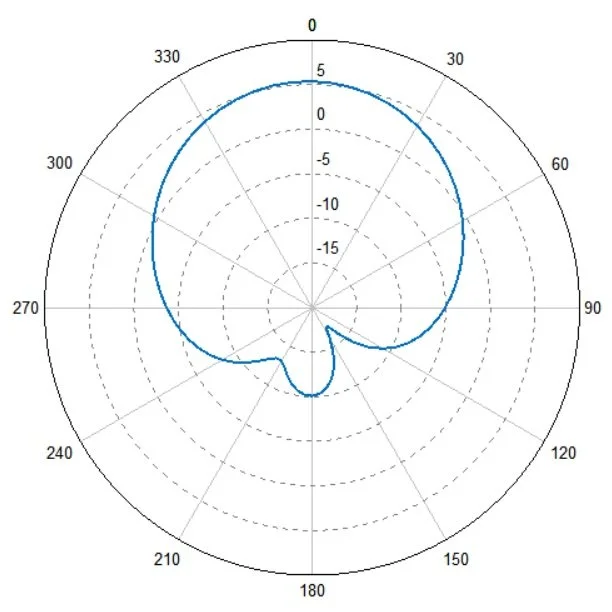

A polar plot chart with a blue line depicting data points around a circular grid, with values ranging from -20 to 5 on the radial axis.

Antenna Quick Look (Simulation Study)

Inputs we need: target bands/channels, enclosure or ground size, materials, constraints.
Deliverables: S11 plot, 3D radiation pattern with E/H cuts, detuning notes, risks, and a 3-page memo with next steps.
Timeline: 5 business days from kickoff.
CTA: Request scope

Request Scope

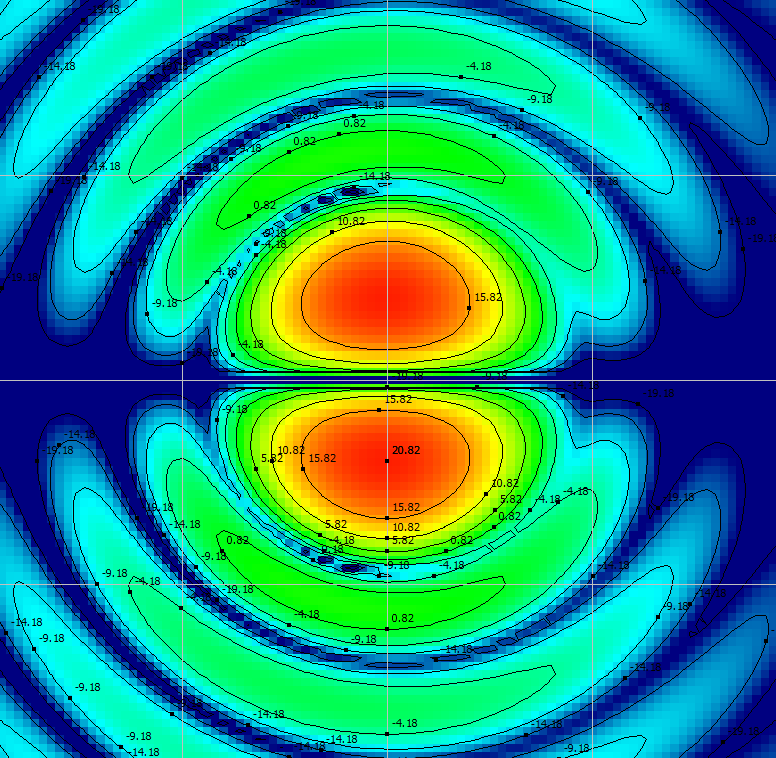

Colorful contour plot with concentric lines and numerical labels, resembling a vibrational or electromagnetic field pattern.

Design & Match (Turnkey design)

Deliverables: geometry, stackup, matching network, tolerance sweep, Gerbers, BOM, assembly notes, and a design-review call.
Timeline: 1–2 weeks per iteration depending on complexity.
Hand-off formats: HFSS/CST project, PDFs, DXF/STEP, CSV S-parameters.
CTA: Request scope

Request Scope

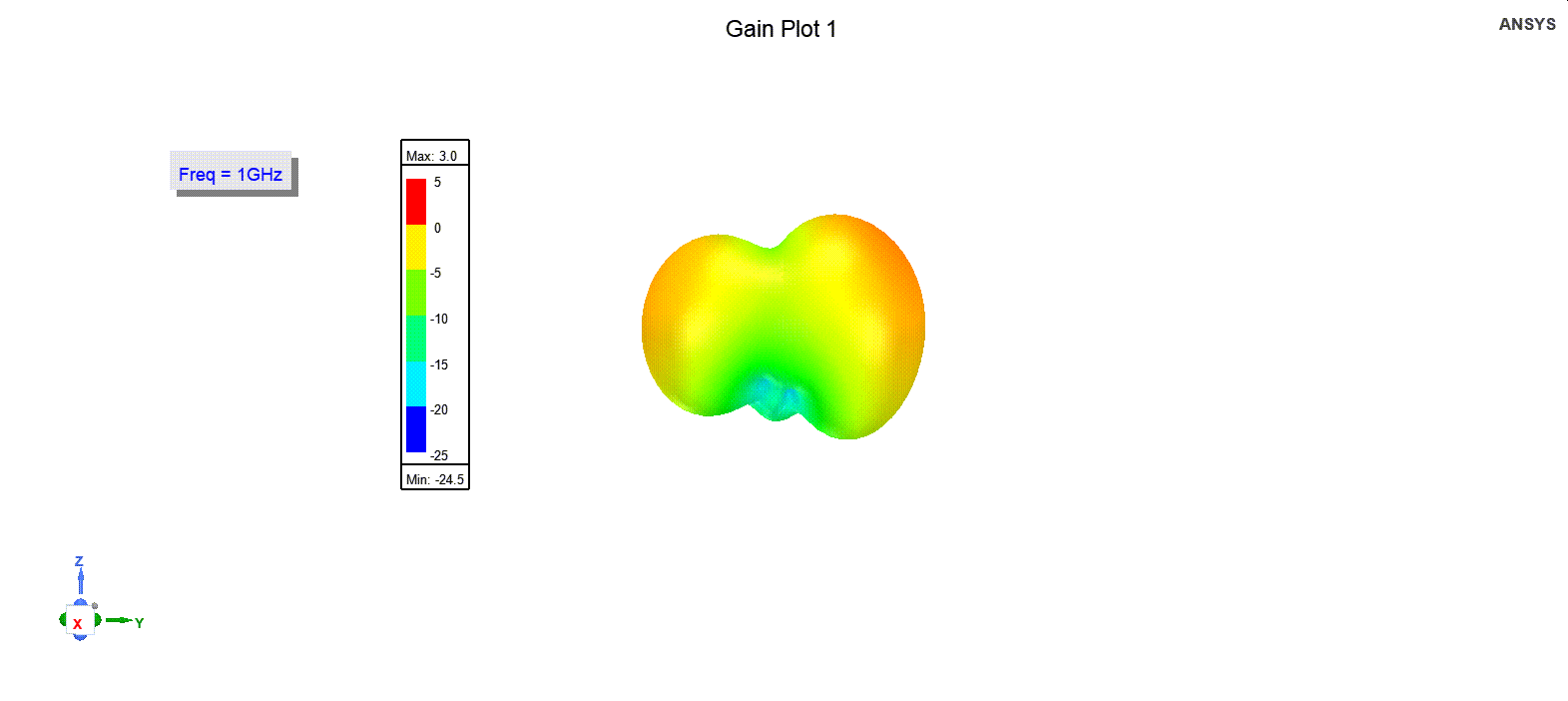

Color-coded 3D gain plot showing variations in gain with a color scale from blue to red, with a legend indicating maximum gain of 3.0, displayed on a computer screen.

Test & Validation (Anechoic or VNA)

Deliverables: test plan, chamber photos, gain/efficiency, axial/linear pol cuts, VSWR/return loss, raw data CSV, and a signed report with pass/fail vs targets.
Timeline: 3–5 business days after hardware receipt.
CTA: Request scope

Request Scope

Capabilities

HFSS/CST licensed • Focus: 600 MHz–10 GHz • VNA to XX GHz • Near/Far-field chamber access • PCB, patch, monopole, arrays, GNSS, ISM, radar links.

Terms

NDA available on request. Export compliance observed (ITAR/EAR). IP created under this engagement transfers upon payment unless otherwise agreed. Net-15 standard.
